The dashboard is the central interface of the hdsemg-select application, providing access to all major features. It gives an overview of the loaded data, the current grid position, and tools for reviewing and cleaning HD-sEMG recordings.

Dashboard

Overview of Dashboard Components

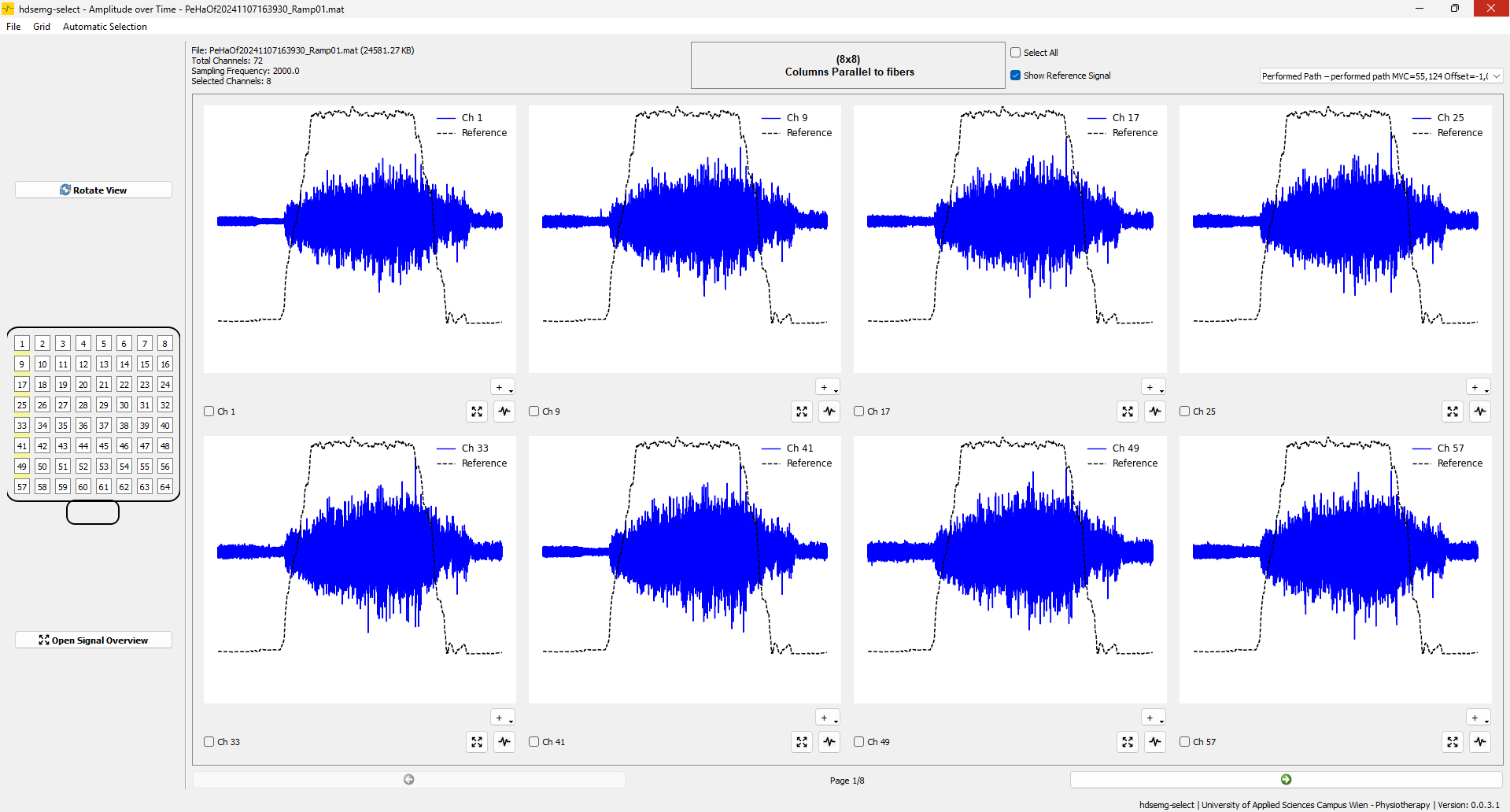

Once you've loaded HD-sEMG data (see the Getting Started Guide if needed), the dashboard displays several interactive components:

  • Grid Navigation Navigate through electrode rows and columns using the on-screen controls or keyboard arrow keys.

  • Signal Plot View the time-domain signal from individual channels.

  • Channels can be toggled on/off using the checkboxes below the plot.

  • Use the "View Time Series" button (expand icon) to open a larger, interactive plot.

  • Use the "View Frequency Spectrum" button (frequency icon) to inspect the frequency content of a channel.

  • Electrode Grid Visualization Displays the electrode layout with the currently selected row or column highlighted. Use the "Rotate View" button to switch between row-wise and column-wise views.

  • Metadata Panel Shows metadata about the loaded file, including:

  • File name, size, total number of channels (including reference channels) and sampling frequency

  • Number of selected channels

  • Currently Selected Grid and Orientation Displays the currently active grid and fiber orientation (rows or columns).

  • By clicking on the panel, the Grid and Orientation Selection dialog can be reopened to change the grid or orientation.
    Grid and Orientation Selection Dialog

  • Selection Controls

  • Select All: Activates all channels in the current grid view.

  • Deselect All: Deactivates all channels in the current grid view.

  • Label Management Assign or edit labels for individual channels (see Channel Flagging for details).

  • Label Dropdown: Assign a label to the currently selected channel.

  • Displayed Labels: All applied labels are shown below each corresponding channel.

  • Reference Signal Display Toggle the visibility of the reference signal for the current grid.

  • You can choose which reference to display via the dropdown next to the checkbox.

  • Signal Overview Plot Opens a detailed plot of all selected channels to help identify artifacts or abnormal patterns. For more information, see Signal Overview Plot.

  • Application Menu Access additional features and settings via the menu bar at the top of the window.

  • File Menu: Open and Save Data and Open Application Settings (see Application Settings).
  • Grid: Change the grid and fiber orientation. Opens the Grid and Orientation Selection dialog.
  • Automatic Selection:
    • Amplitude-based selection: Automatically selects channels based on amplitude thresholds (see Automatic Channel Selection).
    • Automatic Channel Flagging: Automatically assigns flags to channels based on predefined criteria (see Automatic Labeling).

Reference Signal Behavior

By default, all reference signals are automatically selected and included in the exported data. You do not need to select them manually.
